參數表
| 型號Model | TKB1210 | |
| 手腕負載Payload | 7KG | |
| 最大工作半徑Max Working Radius | 960mm | |
| 自由度DOF | 6軸 | |
| 本體重量Body Weight | 49KG | |
| 減速機品牌Reducer Brand | 國產 | |
| 電機品牌Motor Brand | 國產 | |
| 驅動品牌Drive Brand | 國產 | |
| 額定功率Rated Power | 2.4KW | |
| 關節速度Max Speed | J1 | 360°/s |
| J2 | 322°/s | |
| J3 | 360°/s | |
| J4 | 367°/s | |
| J5 | 576°/s | |
| J6 | 576°/s | |
| 關節范圍Max Operation Area | J1 | ±170° |
| J2 | 135°~-70° | |
| J3 | 75°~-75° | |
| J4 | ±160° | |
| J5 | ±120° | |
| J6 | +360° | |
| 防護等級protective specification | J5J6 | IP67（可選） |
| 其他 | IP40 | |
| 重復定位精度Position Repeat Accuracy | ±0.04mm | |
| 控制柜controller | TRC3-A06 | |
| 工作溫度Working Temperature | 0~45℃ | |

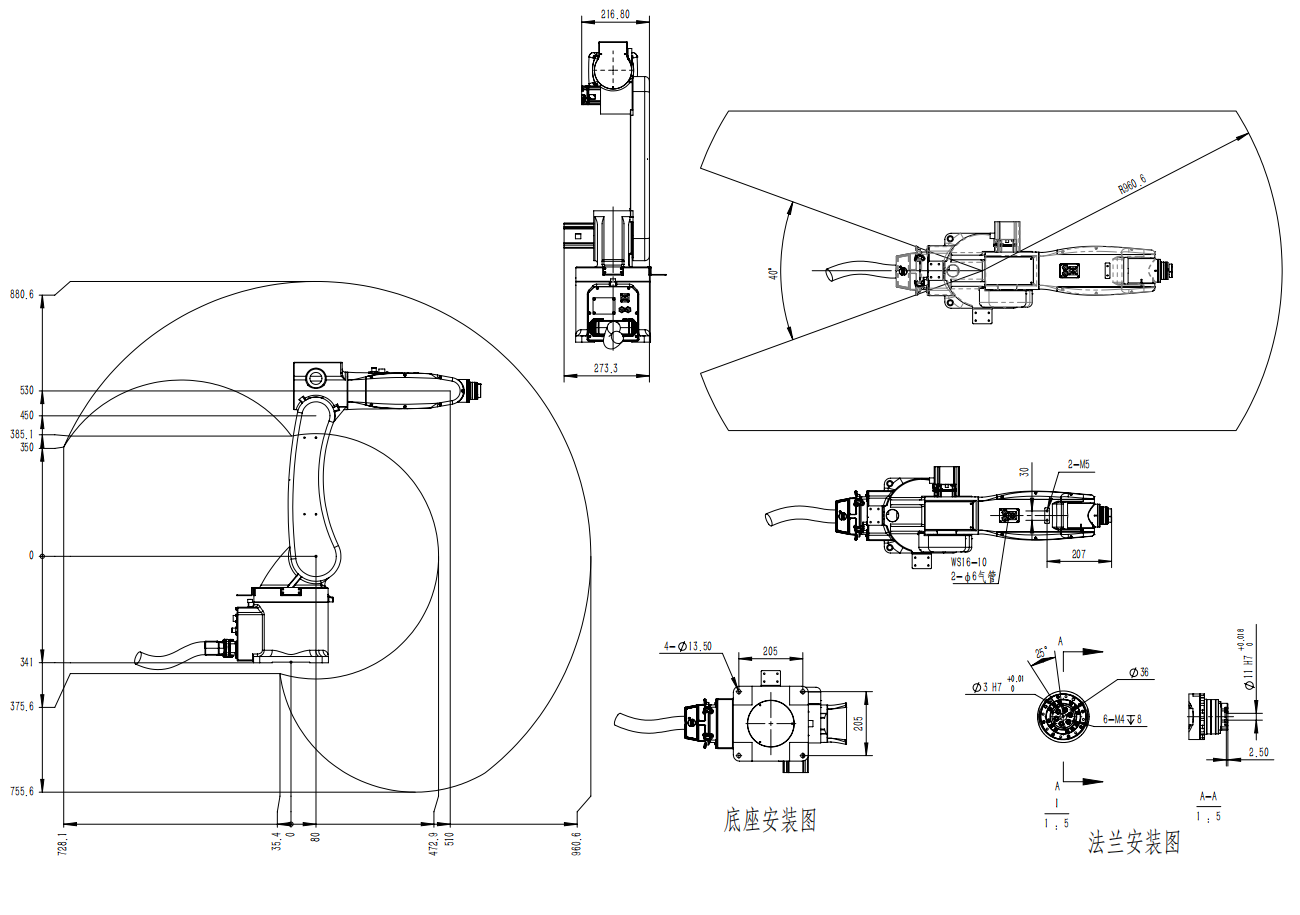

參數圖
